Boss Chevy Cab Rack

$3,300.00

Built for touring and work, the Boss Aluminium Chevy Cab Rack is a purpose-built, modular cab rack system engineered specifically for Silverado fitment.

With side lighting included as standard, plus endless front-facing lighting options and plug-and-play wiring, you can tailor the rack to suit your setup.

Overview
Specifications
Resources

Designed and manufactured in house from marine grade alloy, the Boss Chevy Cab Rack delivers high strength, low weight, and long term corrosion resistance. It features 5mm side plates and heavy duty T-nut extrusion cross rails for excellent load handling and easy accessory mounting. Every component is precision laser cut, folded, treated and finished in a durable powder coat, with stainless steel fasteners used throughout.

Developed from 3D scanning and CAD modelling, then prototyped and test fitted on vehicle, the rack is refined through multiple iterations to dial in fitment, strength, and mounting points. The modular design allows you to add, move, or upgrade accessories over time to suit your touring or work requirements.

Included as standard
4 x Stedi Micro Touch Dual Colour 7.8 inch side lights with brackets.

Optional extras
Plug-and-play wiring harness. The harness runs within the rack and brings all wiring back to a single connection point at the rear. Wiring to the vehicle and switching are quoted separately.

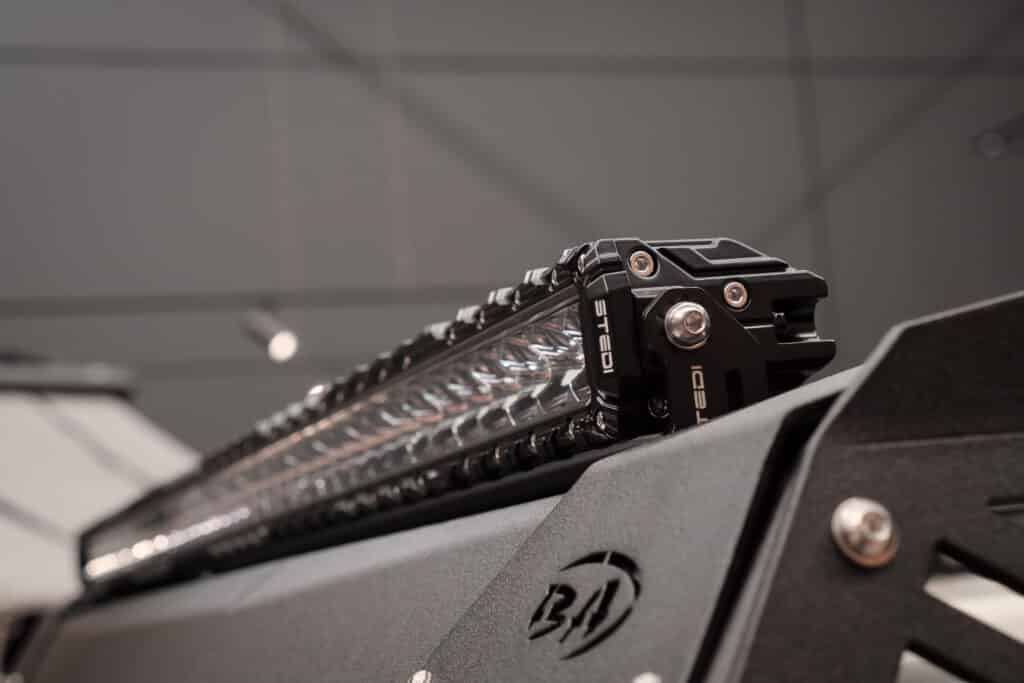

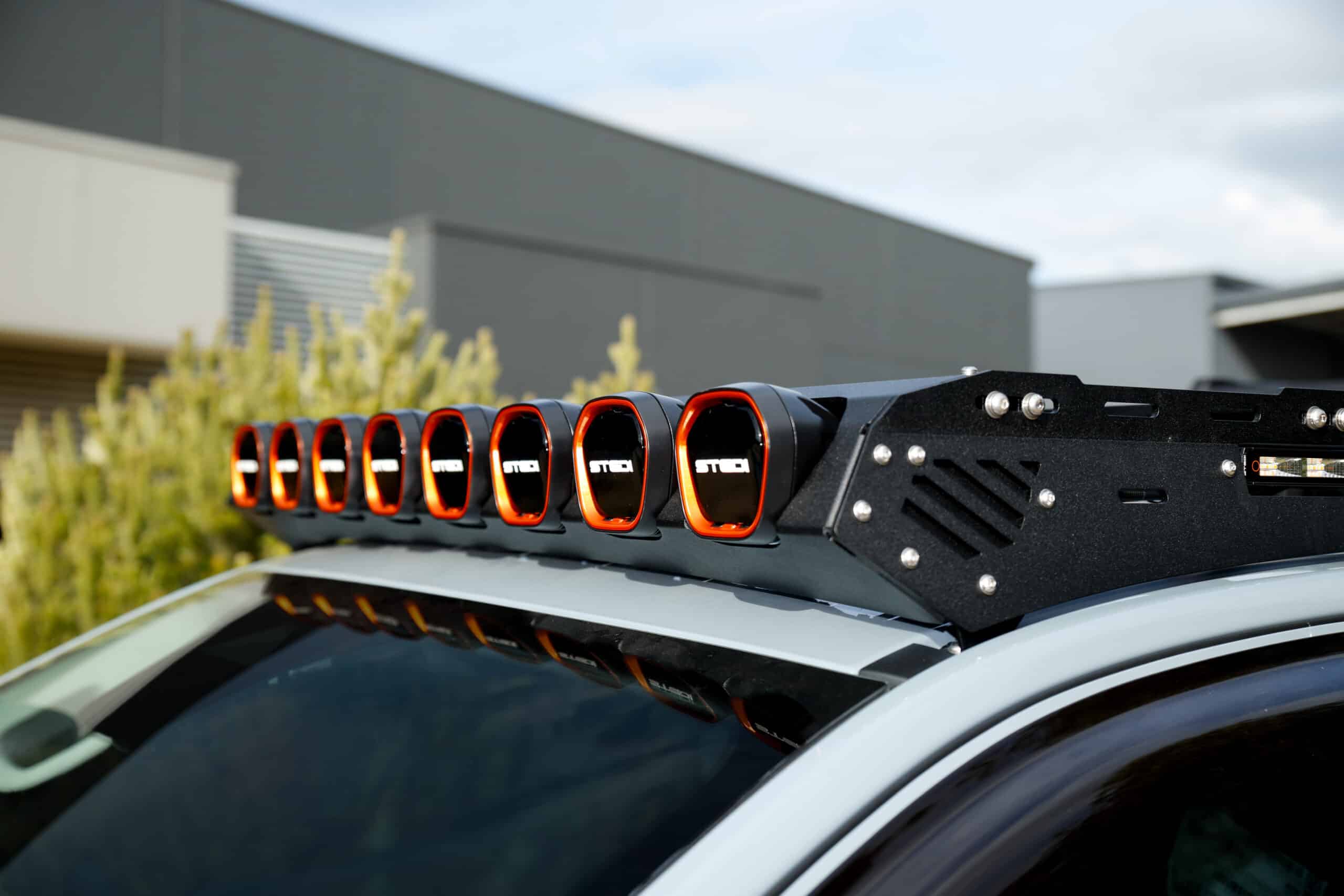

Front-facing STEDI lighting options are available, including the STEDI ST3K Slim Light Bar and the STEDI Type-X™ EVO Mini 4 Inch LED Driving Light Boss Cab Rack Package, supplied as a set of eight. Alternatively, the modular design makes it easy to fit the lights of your choice.

Fitting
Cab racks are supplied as a kit for dealer assembly and installation. Fitment, sealing, and all wiring and switching to the vehicle should be completed by a qualified installer.

Load rating and weight
Allowable load is vehicle limited. Do not exceed the roof or gutter load limits in the vehicle owner’s manual.
Chevy system weight is around 35 kg including 4 side lights, a 41 inch front light bar when fitted, wiring loom, and mounts. Approximately 10 kg of this total is lighting, wiring, and mounting hardware.

Note: See under Specifications for more information.

Dimensions
1300 mm wide x 1725 mm long.

Lead time
2 to 4 weeks.

Note
Pricing does not include fitting.



  • To Suit Vehicle: Chevy Dual Cab
  • Construction: 5mm laser cut marine grade alloy side plates
  • Cross rails: heavy duty T nut extrusion
  • Finish: treated and powder coated
  • Fasteners: stainless steel throughout
  • Lighting included: 4 x Stedi Micro Touch Dual Colour 7.8 inch side lights with brackets
  • Optional wiring harness: Plug and Play Wiring Harness, runs within the rack to one connection point at the rear
    SKU ELE-RR-UNI-DCL
  • Optional front light bar: ST3K 41.5 inch Slim Light Bar with side infill caps
  • Dimensions: 1300 mm wide x 1725 mm long
  • System weight guide: around 35 kg including side lights, 41 inch front light bar when fitted, wiring loom, and mounts
    Approximately 10 kg is lighting, wiring, and mounting hardware

Load rating and weight
Allowable load is vehicle limited. Do not exceed the roof or gutter load limits specified by the vehicle manufacturer in the owner’s manual and/or vehicle specifications.

It is the owner’s responsibility to ensure the combined weight of the rack system, lights, wiring, mounts, accessories, and cargo remains within the vehicle manufacturer’s stated roof or gutter load limits.

Boss Aluminium is not liable for damage, loss, or failure arising from incorrect loading, overloading, improper fitment, misuse, or use outside the vehicle manufacturer’s stated limits, to the extent permitted by Australian law.

Dynamic load is the load while driving. Wind, vibration, braking, cornering, and off road impacts increase forces significantly, so loads should be reduced for off road use and must remain within the vehicle manufacturer’s stated limits.

Static load is the load when parked, such as when using a roof top tent. Static capacity may be higher than dynamic capacity, but this varies by vehicle and must still comply with the manufacturer’s guidelines.

The Boss Cab Rack to suit Chevy weight is around 35 kg including 4 side lights, a 41 inch front light bar when fitted, wiring loom, and mounts. Approximately 10 kg of this total is lighting, wiring, and mounting hardware, and must be included when calculating allowable load limits.
