Power your Starlink Mini directly from a suitable 12 V or 24 V vehicle, canopy, caravan or auxiliary battery system.
Converts a suitable 12 V or 24 V DC input into a regulated 30 V output
Designed specifically for the Boss Core Mount for Starlink Mini
Provides the optimum operating voltage for reliable vehicle-mounted operation
Helps minimise voltage drop and power-related restarts
Clean, integrated installation within the Core Mount system

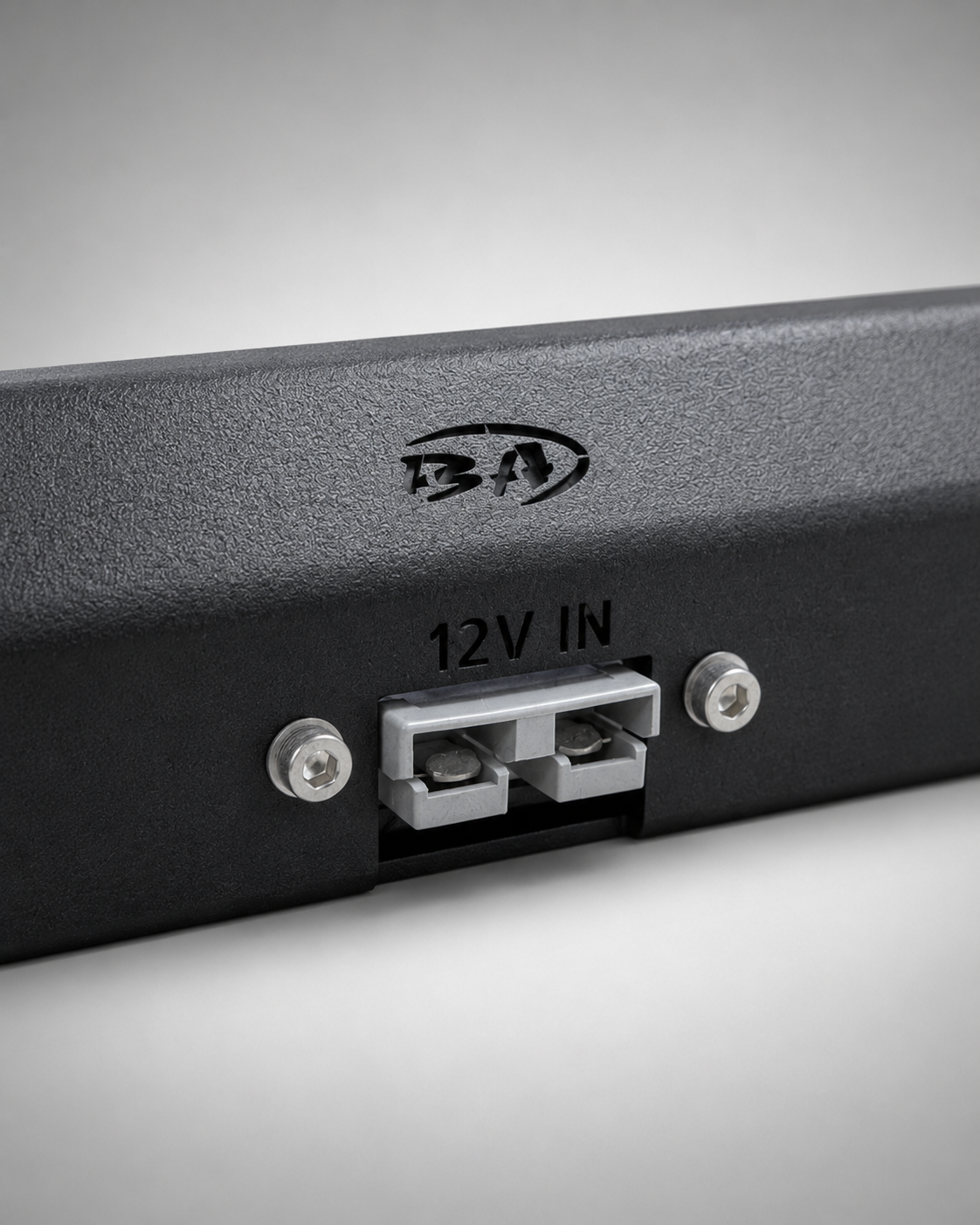

Anderson plug connection for simple connection to a suitable power supply
Module only. The Boss Core Mount and Starlink Mini are not included.
Ready to order
Shipping and available payment methods are confirmed at checkout. Apple Pay or Google Pay availability depends on your device, browser and supported wallet setup.
THE DETAILS
Explore the details.
Overview

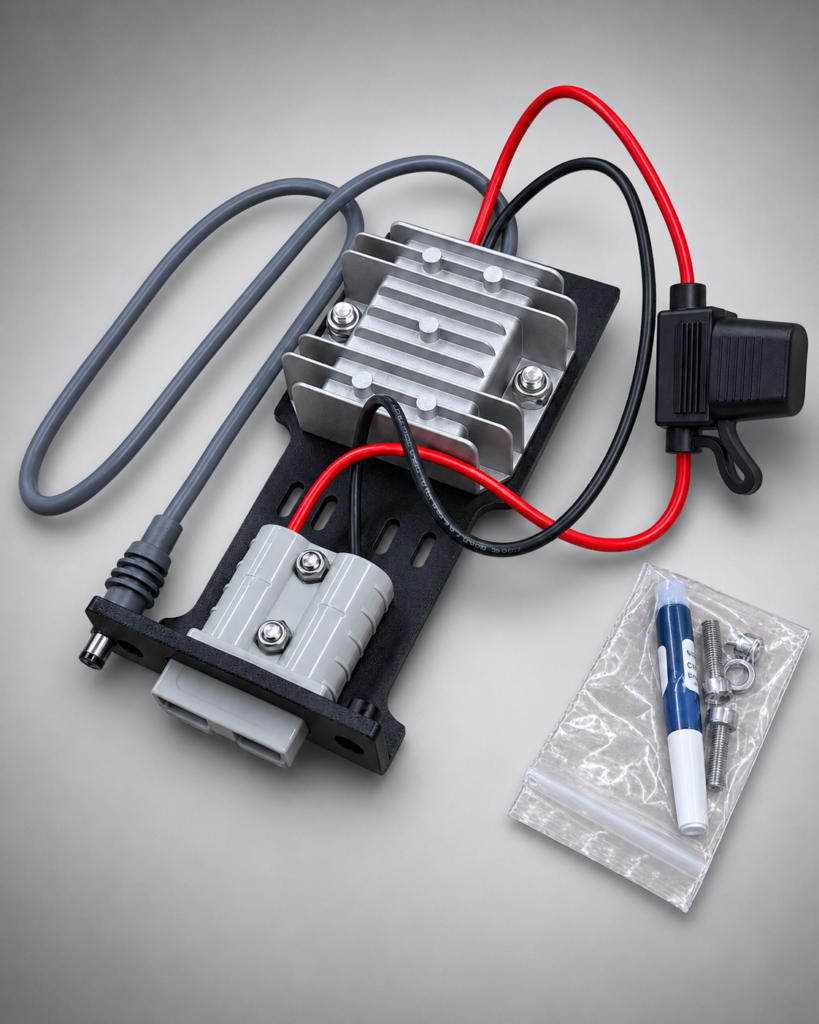

The Boss Step-Up Power Module is a clean, integrated power solution developed specifically for the Boss Core Mount for Starlink Mini. It converts a suitable 12 V or 24 V vehicle, canopy, caravan or auxiliary battery supply into a regulated 30 V output for the Starlink Mini.

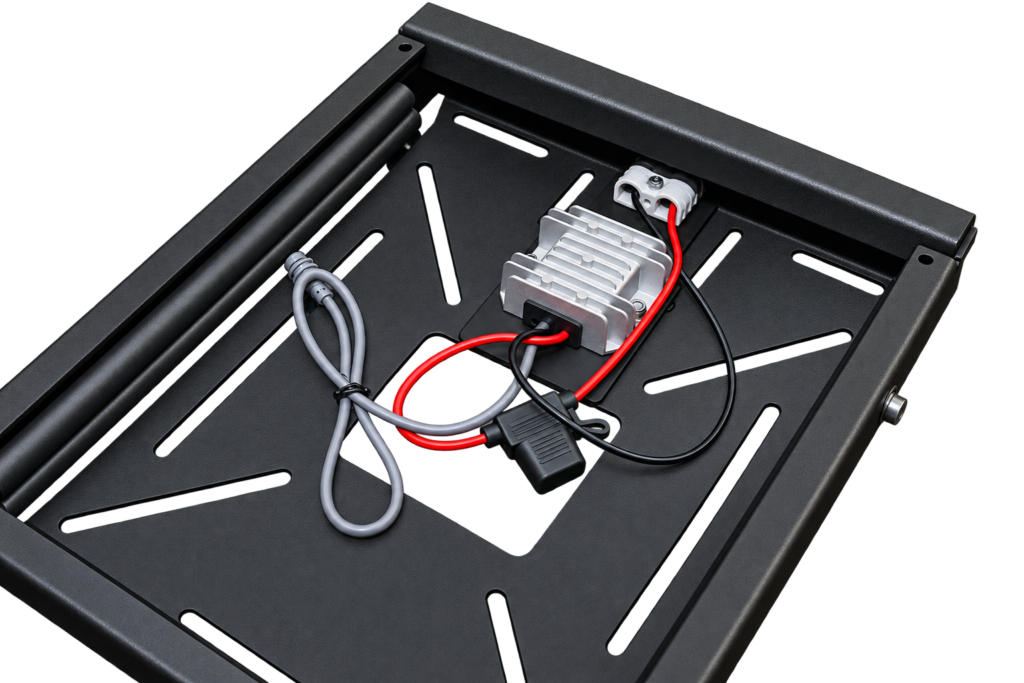

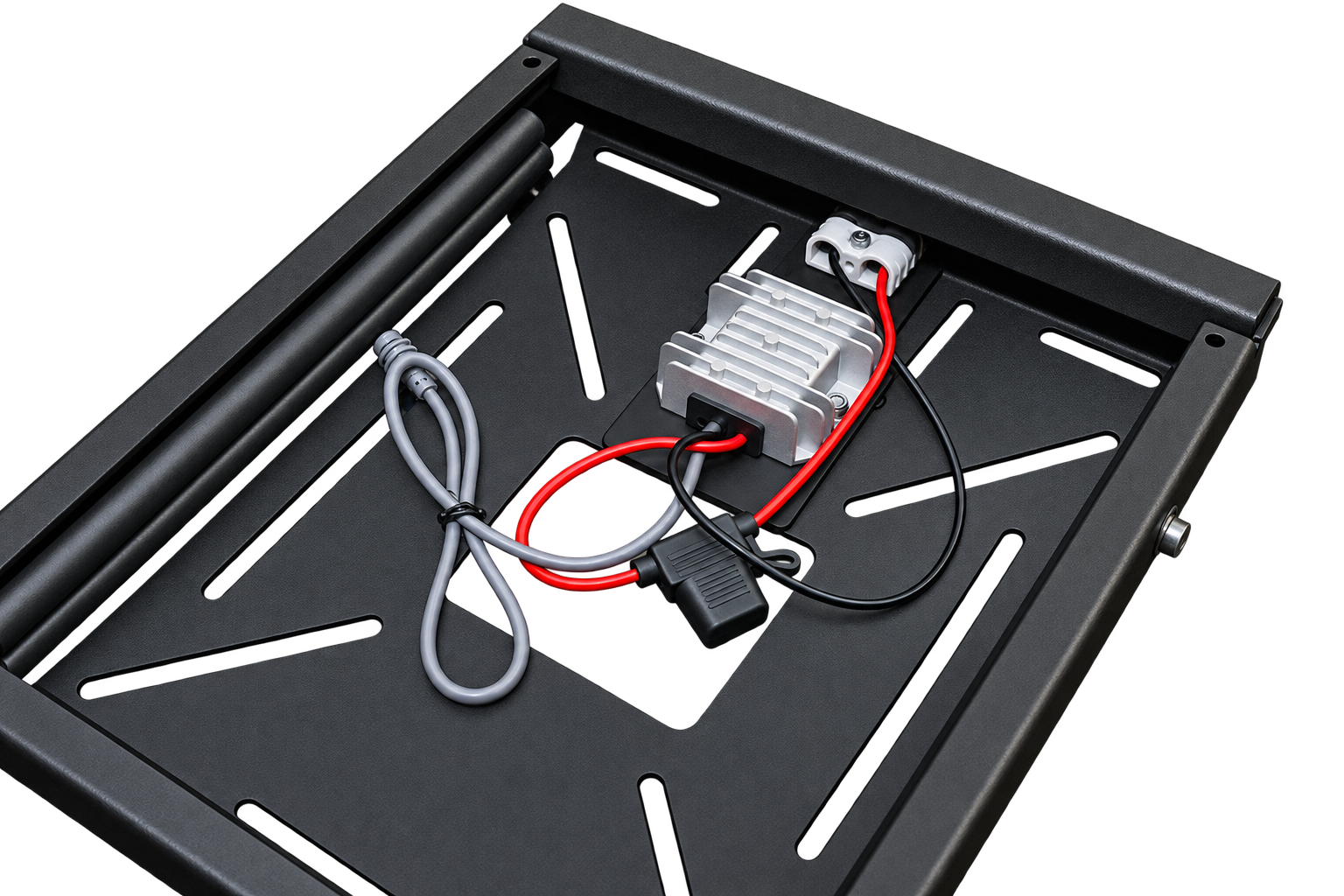

Based on Boss Aluminium’s real-world experience, 30 V provides the optimum setup for reliable vehicle-mounted operation and matches the output voltage of the standard Starlink power supply. The module is mounted neatly within the Core Mount system, creating a compact installation without relying on a separate inverter or the standard 240 V Starlink power supply.
Designed and manufactured in Australia, and suitable for a new installation or as a later upgrade to a compatible Core Mount.
Key Benefits
Converts a suitable 12 V or 24 V DC supply into a regulated 30 V output
Provides the optimum operating voltage for a vehicle-mounted Starlink Mini
Helps maintain consistent power as battery or vehicle voltage changes
Helps minimise voltage drop along the Starlink-side power lead
Reduces current through the 30 V Starlink-side cable compared with operating that cable at 12 V
Helps reduce dropouts or restarts caused by insufficient voltage reaching the Mini
Supports direct DC operation without a separate 240 V inverter
Anderson plug connection for a clean and simple installation
Designed specifically for the Boss Core Mount for Starlink Mini
Suitable for a new installation or as a later upgrade
Ideal For
Four-wheel drives and touring vehicles
Canopies and service bodies
Caravans and camper trailers
Trade and construction vehicles
Fleet and commercial applications
Emergency and first responder vehicles
Remote worksites and field operations
Auxiliary battery and off-grid electrical systems
Why Run the Starlink Mini at 30 Volts?
Although the Starlink Mini accepts a 12–48 V DC input, it requires a similar amount of power regardless of the supply voltage — so as voltage decreases, the current required increases. At approximately 60 W, the Starlink Mini may require around 5 A at 12 V, 2.5 A at 24 V or 2 A at 30 V.
Higher current places additional load on cables, plugs, sockets and electrical connections. This is particularly important with cigarette-lighter-style plugs and sockets, which may not be suitable for sustained higher-current operation — undersized cable, poor-quality plugs or loose connections can generate excessive heat and may damage wiring, plugs or sockets.
By converting the supply into a regulated 30 V output close to the mount, the Boss Step-Up Power Module helps reduce current and voltage drop on the Starlink-side power lead while providing consistent voltage to the Starlink Mini. This helps reduce unexpected dropouts or restarts caused by insufficient voltage reaching the unit.
Specifications
Product: Boss Step-Up Power Module for Core Starlink Mini Mount
Application: Boss Core Mount for Starlink Mini
Input: Suitable 12 V or 24 V DC electrical system
Regulated output: 30 V DC
Input connection: Anderson plug
Installation: Integrated within the Boss Core Mount system
Operation: Direct DC power conversion
Compatibility: Boss Core Mount for Starlink Mini
Not included: Starlink Mini device and Boss Core Mount
Designed and manufactured in Australia
Important installation information: The module must be connected using appropriately sized automotive cable on a suitably rated electrical circuit. The supply cable must be protected by a correctly rated fuse or circuit breaker installed as close as practical to the battery or original power connection. Avoid relying on light-duty cigarette-lighter plugs or sockets, use secure high-quality electrical connections, and have the wiring installed by a suitably qualified person where required.
Please note: The 12 V or 24 V supply side still carries the current required to operate the converter and the Starlink Mini, so the supply wiring, fuse and connections must be correctly rated for the application.
Check your setup
Confirm compatibility with your mount and intended installation before ordering. For fitment advice, contact Boss Aluminium.
